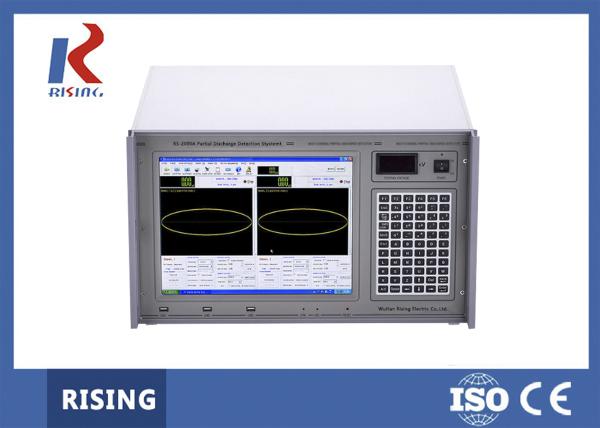

RS-2000A Partial Discharge Detection System / Partial Discharge Tester
Product Introduction
Partial discharge test is the main testing item of the insulation of the electric power equipment, and parameters such as partial discharge are important indicators to evaluate the quality of the electric power equipment. Being the new member of the successful PD Test Equipment series, the RS-2000A PD Test System series is developed according to the latest international and domestic technological progress.
The RS-2000A uses the worldwide standard Windows operating system and an intuitive control and display panel to allow even inexperienced operators to learn quickly with minimal training. In addition, advanced features such as higher accuracy, auto-mated calibration, data analysis, and customized test recording, are standard. The product also has the full program-controlled automatic calibration, automatic synchronization, automatic voltage recording, automatic measurement & save & playback features.
Support all kinds of parameters, such as the discharge repetition rate n, the average discharge current I. Various display style of the PD wave form such as sine map, dot matrix and so on, making it easier to get the result. New digital filtering and interference suppression combined with a rich and dynamic statistical analysis of patterns.
COMPATIBLE RS-2000A system, the detection method, measurement loop, technical performance parameters comply with the latest GB7354 and IEC-270 "partial discharge measurement" standards. Applicable to all types of high voltage electrical equipment, partial discharge measurement, covering the full voltage and capacity levels, on behalf of the domestic digital PD instruments of the most advanced technology.
Products Features
1. Programmable control.
2. Automatic calibration, synchronization, voltage recording, saved measurements, playback.
3. Automatically generated test report.
4. Two-dimensional and three-dimensional diagram display PD.
5. Digital fenestration technology, strong anti-interference ability.
6. Dual -channel measurement and digital differential technology, which can measure 2 sample or 1 sample of two measuring points PD signal, can be easily analyze source of partial discharge signals.
Technical Parameters
| Measuring channel |
A, B 2 channels |
| Measuring sensitivity |
0.1pC |
| Measuring frequency range |
3dB width 10kHz-300kHz |
| Programmable filter gears setting |
Low end:10,20,40kHz
High end:100,200,300 kHz
|
| Gain dynamic range |
120dB |
| Sampling rate |
0.1μs/point for each channel |
| Sampling accuracy |
8 bit±1/2LSB |
| Synchronous frequency |
30,100,150,200,250Hz or any Hz |
| Calibration impulse generator |
HTJF-301 |
| Calibration impulse voltage |
10V,5V,2V,1V,0.5V,0.2V :six gears available |
| Calibration capacitor |
50pF,200pF :two gears available |
| Calibration impulse voltage rise time |
<60ns, pulse width>20μs |
| Calibration impulse voltage fall time |
>100μs |
| Calibration phase angle range |
0-360 |
| PD peak value |
0-1000pC |
| Working power |
AC 220V±10%,50Hz, power<100VA, fuse 0.5A
|
